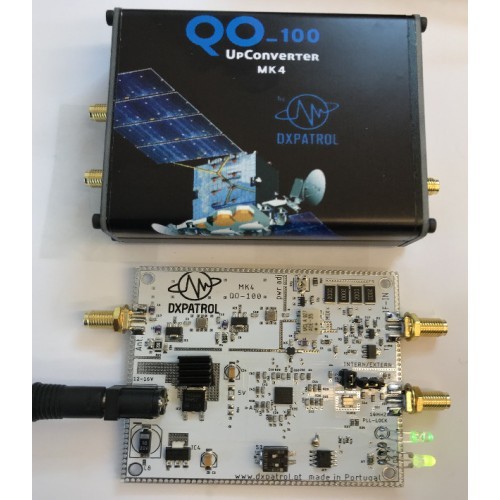

Up-Konverter MK4 for QO-100

The Up-Konverter DXPatrol MK4 (v4.0) for QO-100 allows transmission on the QO-100 satellite uplink and narrowband transponder (NB) from HF, VHF, or UHF radios at frequencies of 28/144/432/1296 MHz to 2400 MHz (13 cm).

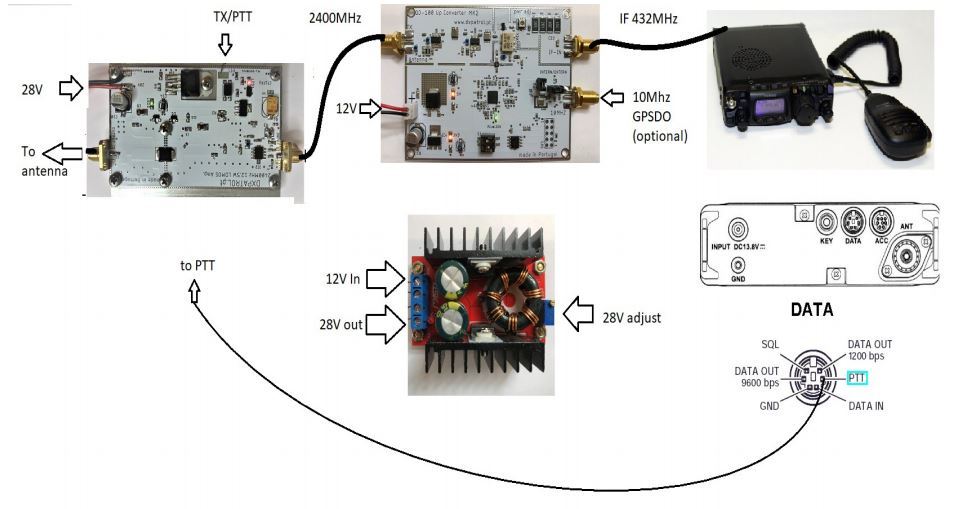

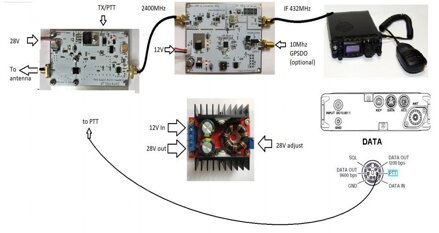

Output power is adjustable from 10 mW to 200 mW max and allows for driving the DXPatrol 2.4 GHz 12W amplifier.

Version V4.0 - MK4: With jack power connector and VOX/PTT standby mode management.
Fully lockable to internal 10 MHz TCXO reference or external GPSDO.
TX/Standby function (standby mode) with RF VOX.
Extreme accuracy and precise transmission frequency.
Local oscillator has 4 factory-programmed frequencies for 4 IF uses.

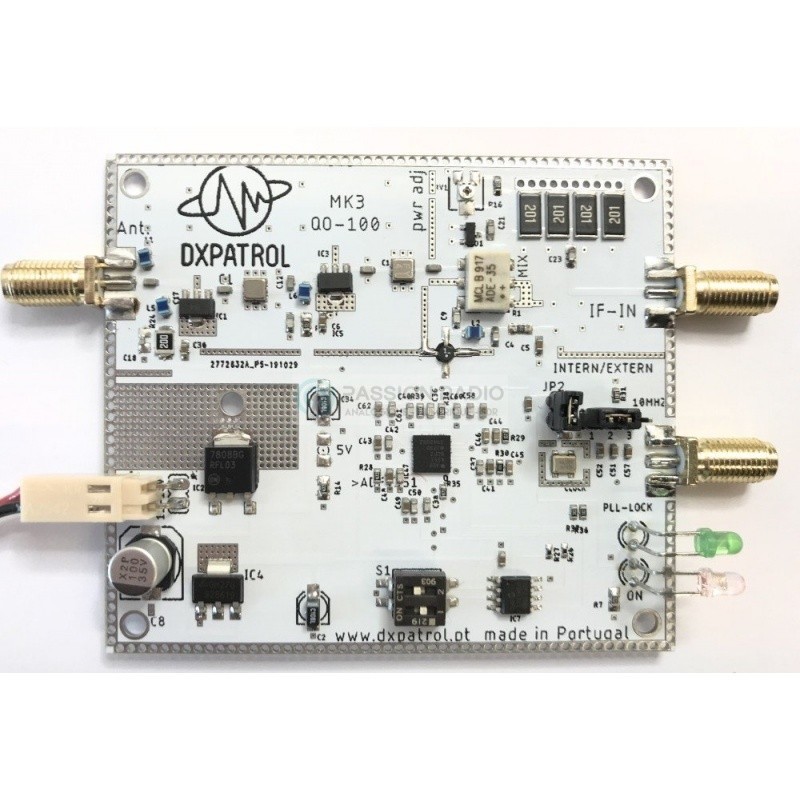

Easy selection using the switch (s1) on the board.
Clean and stable signal.
Spurious emissions = < 50 dB.
200 mW output 23 dBm.
Local oscillators use analog AF4351 synthesizer.
Locked to 10 MHz TCXO sine wave oscillator Frequency Stability 500 ppb.
Power supply 10 to 15 V.
Current consumption 300 mA.
Dimensions: 77 mm x 67 mm.
SMA connectors.

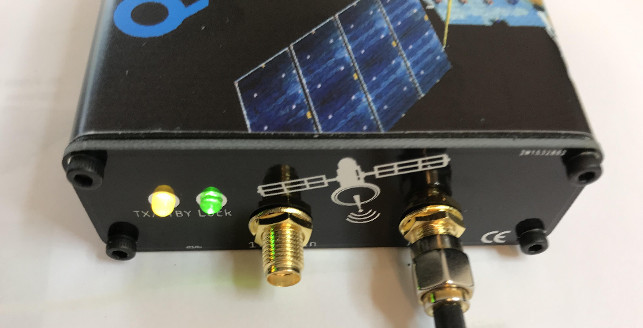

Green LED indication of locking.
TX/Standby indication (standby mode) Green/Orange LED.
RF input 1 to 3 W (absolute maximum 6 W).

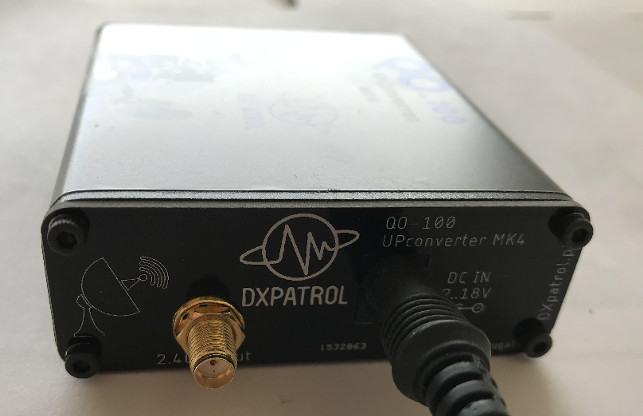

New connection with DC connector.
