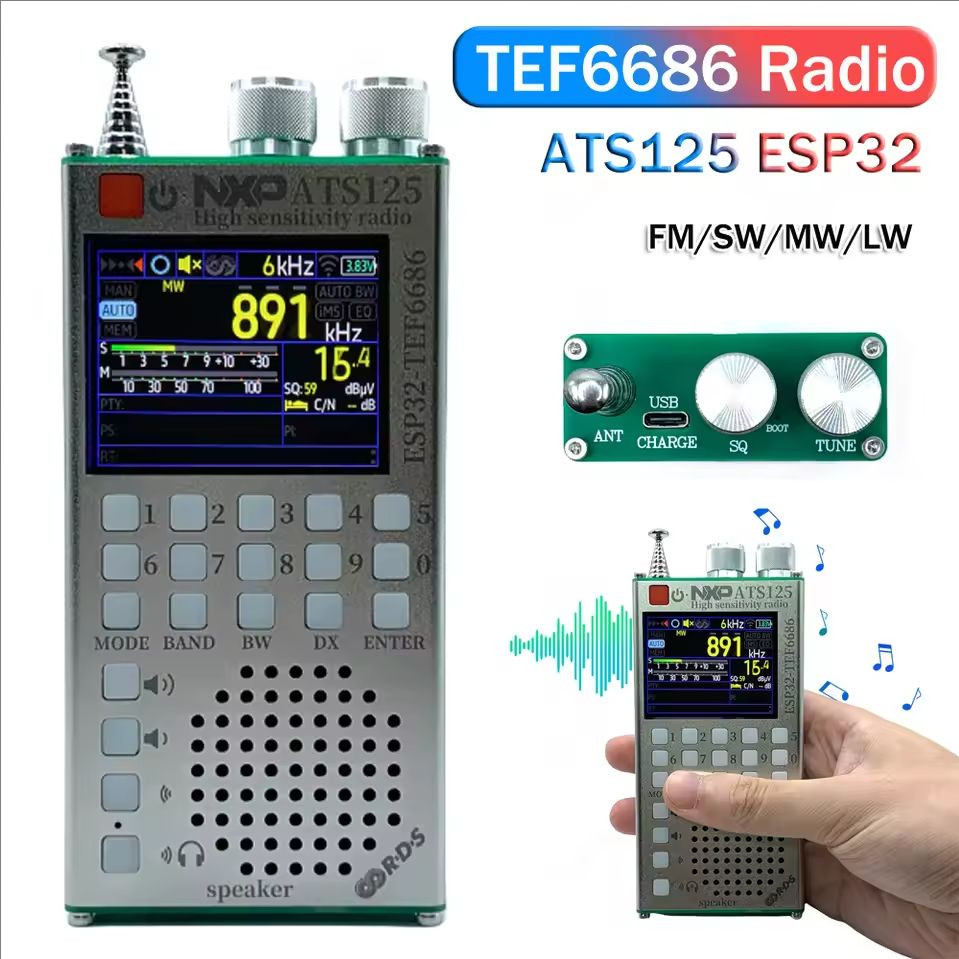

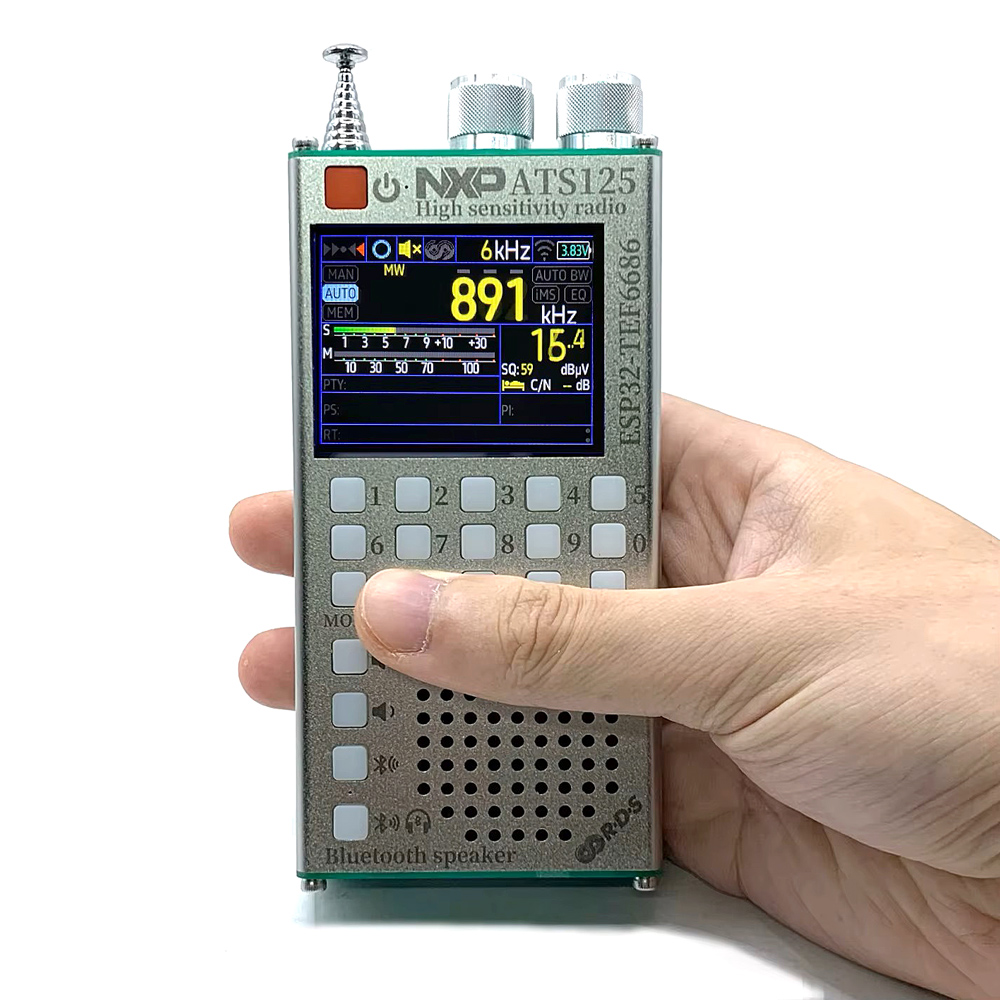

ATS125 Portable Radio NXP TEF6686 Bluetooth FM/SW/MW/LW 2.4" Touchscreen
The ATS125 is a compact, high-performance portable radio receiver featuring the advanced NXP TEF6686 chipset.
It supports FM/SW/MW/LW bands, offers excellent sensitivity and selectivity, and includes modern features such as Bluetooth transmitter/receiver mode, RDS display, and a clear 2.4" IPS touchscreen.
With its aluminum body, long-life battery, and rich functionality, it is ideal for radio enthusiasts, travelers, and outdoor use.
Product Advantages:
- Equipped with NXP TEF6686 chip, featuring excellent selectivity and ultra-high sensitivity.
- Optimizes multi-path interference suppression, adjacent channel weak signal processing, and noise elimination.
- Supports advanced features: Full RDS data display, automatic/manual station scanning, mute function, battery voltage display, and station presets.
- Based on mature TEF6686 receiver design with a 2.4-inch IPS LCD color screen (resistive touchscreen) for easy portability and rich information display.
- Built-in digital keyboard for quick frequency input and 2500mAh high-capacity battery for extended use.

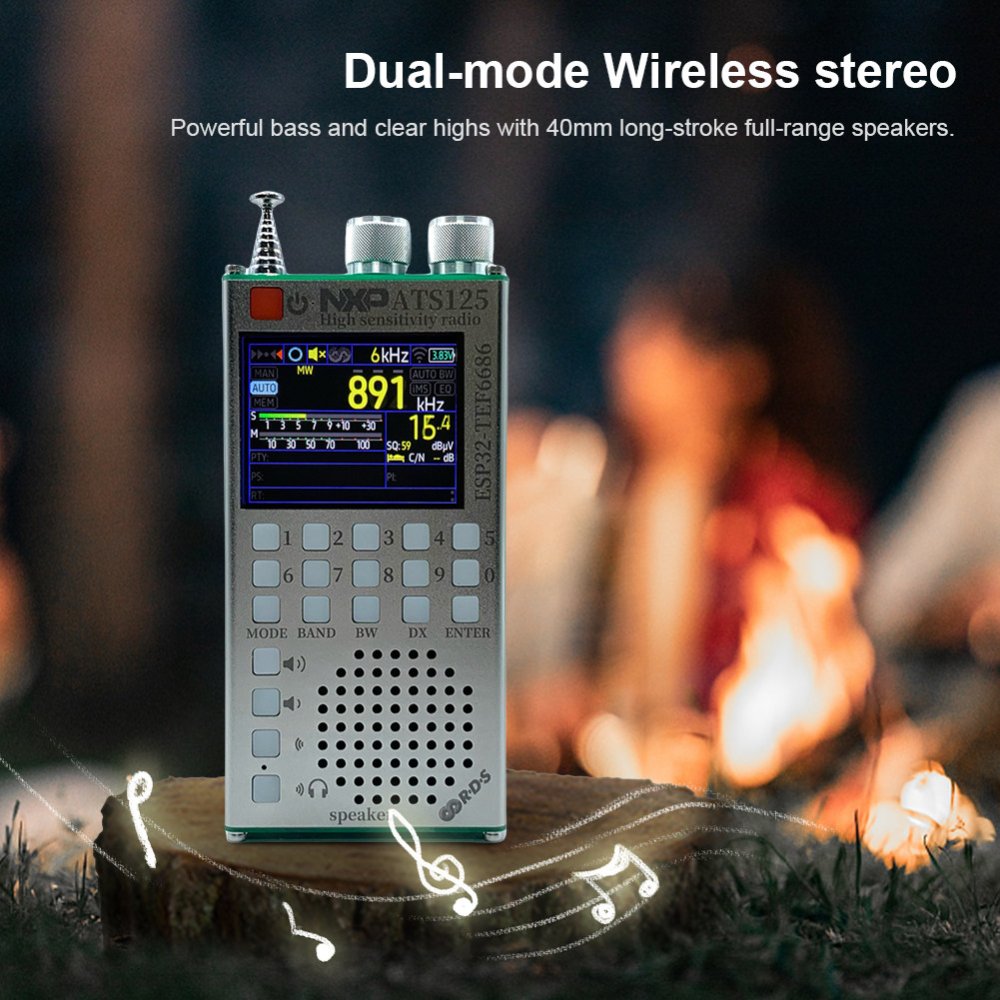

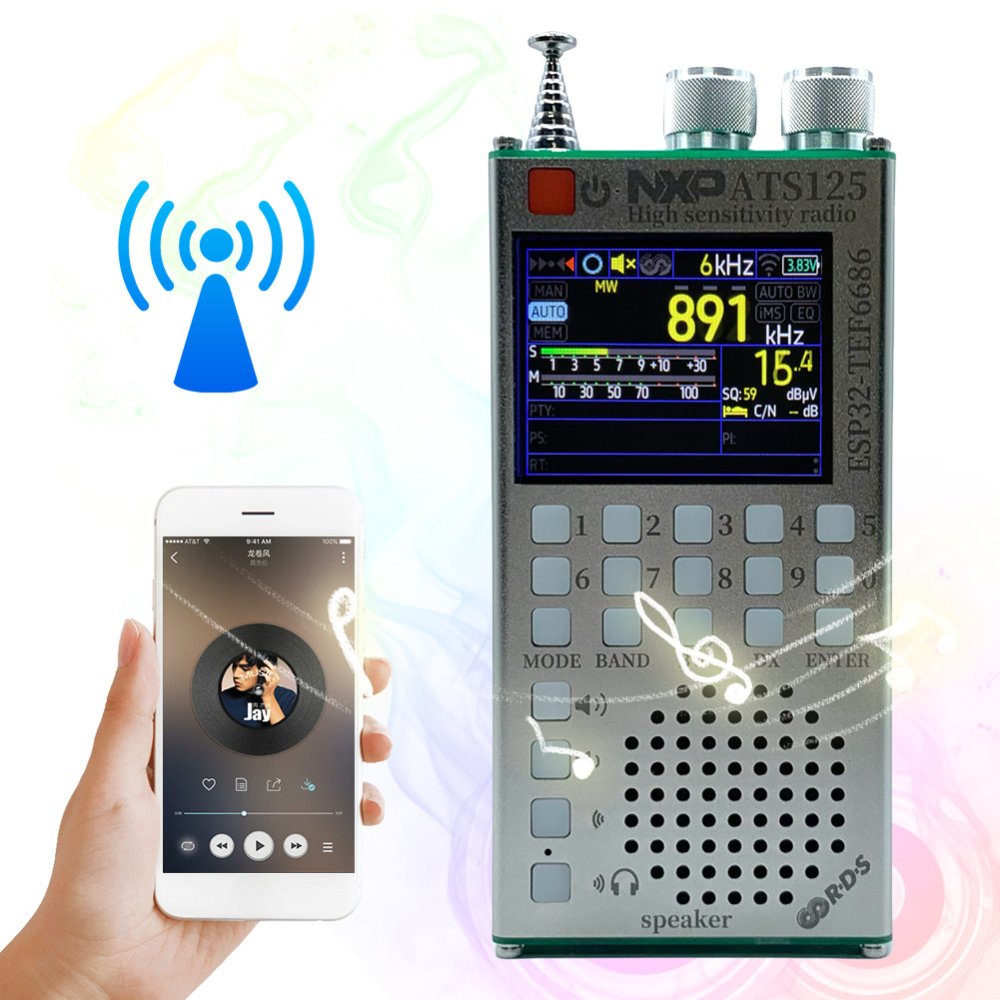

Dual-mode Bluetooth stereo:
- Receiver mode: Acts as a Bluetooth speaker.
- Transmitter mode: Sends audio wirelessly to Bluetooth earphones/speakers.
- Equipped with 40mm long-throw full-range speaker for powerful bass and crystal-clear highs.
Product Specifications:
- Main control chip: ESP32-ROOM-32U
- Bluetooth chip: High-performance Bluetooth transceiver
- Modes: FM / SW / MW / LW
- Screen: 2.4" IPS LCD, 320×240 resolution, resistive touchscreen
- Controls: Digital keypad + tuning knob
- Antenna: Built-in 820mm telescopic + 3.5mm external antenna jack
- Speaker: TI TPA6211A1 amplifier, 40mm full-range speaker
- Battery: 3.7V / 2500mAh polymer lithium battery
- USB port: Type-C (charging / data upgrade) with CH340 chip

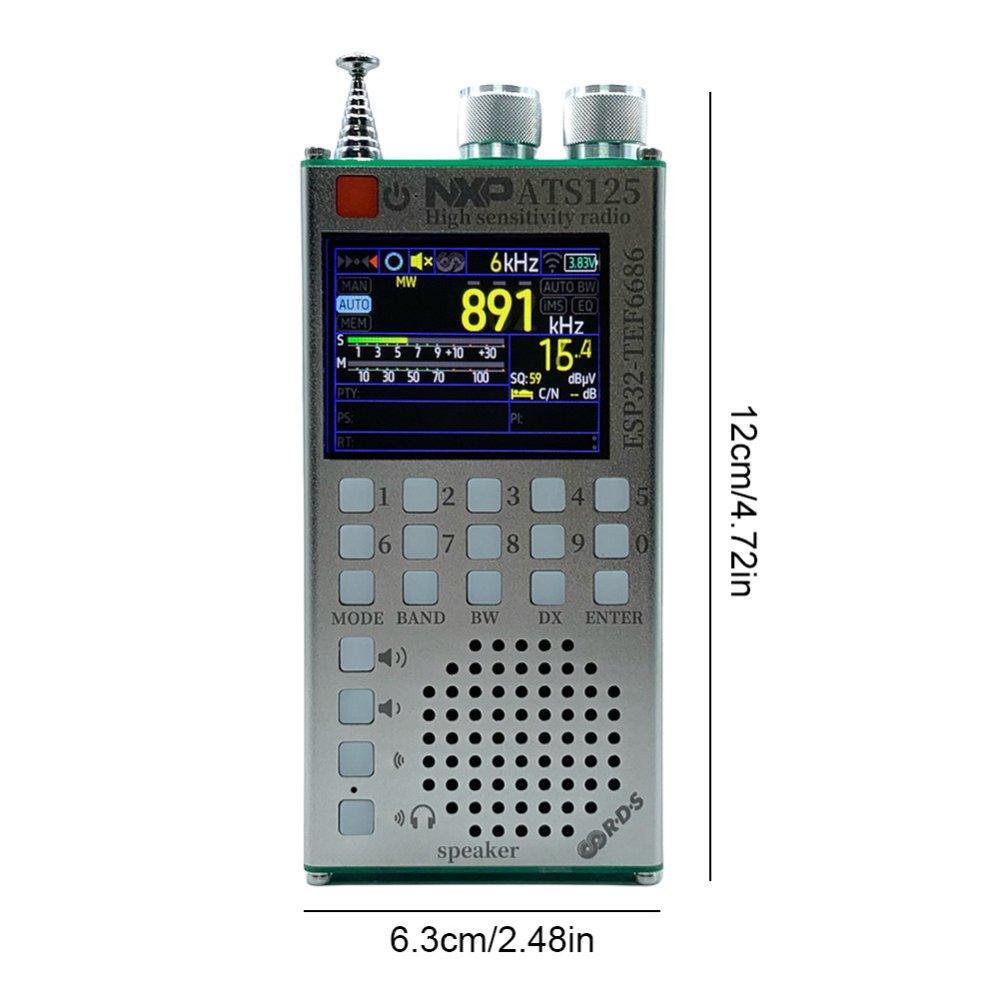

- Dimensions: 120 × 63 × 25mm (without antenna)
- Weight: ≈ 350g
- Material: Aluminum alloy shell
Notes
- Flashing the device carries unknown risks — use at your own responsibility!
- Software versions may vary between batches.
- This radio does not support SSB reception.
What's in the Box:
- 1 × ATS125 Radio Receiver
- 1 × Type-C Cable
- 1 × Touchscreen Stylus
