Faulty Cat V2.1 – EMFI & Voltage Glitcher for Embedded Security Testing

Faulty Cat V2.1 is a low-cost, open-source Electromagnetic Fault Injection (EMFI) tool designed for self-study, hobbyist research, and security testing of embedded systems.

It is based on a remix/optimization of the ChipSHOUTER PicoEMP project, with a focus on safe operation, high performance, usability, and affordability.

The device enables fault injection attacks to disrupt the normal behavior of microcontrollers or SoCs.

It supports two main physical fault-injection techniques:

• EMFI (electromagnetic) and Crowbar (voltage glitching).
• These can be used in direct single-shot mode or as automated parameter-swept campaigns.
• Additional features include automatic SWD/JTAG pin detection on unknown devices, voltage glitching, dedicated trigger pins, analog input for target monitoring, and more.

Key capabilities:

• Electromagnetic Fault Injection (EMFI) for runtime attacks (e.g., authentication bypass, key extraction).
• Integrated glitcher for precise voltage/reset signal manipulation.
• SWD/JTAG scanner for discovering undocumented debug interfaces.
• Firmware v3 (from-scratch rewrite) with improved architecture, CLI/TUI host tool (faultycmd), and extensive documentation.

Important Safety Notes:

• The device involves high voltage.
• Always use the plastic shield, never operate without it, and treat the SMA output with extreme caution to avoid electric shock.
• It is intended for personal, knowledgeable use only—not for professional or educational environments requiring safety certifications.

Specifications:

• Model: Faulty Cat V2.1
• Microcontroller: RP2040
• Input Voltage (recommended): 5V (USB-C)
• Operating Voltage: 3.3V
• Memory: 16MB Flash, 264KB RAM, 16KB ROM, 16MB External Flash
• I/O: 6 Digital I/O pins, 6 PWM
• Connectivity: USB Type-C, USB communication

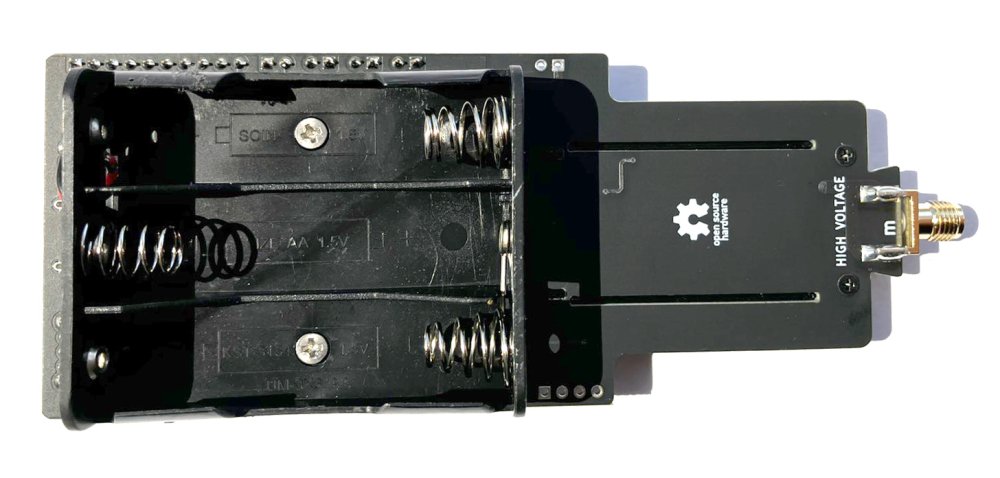

• Power: Supports 3x AA batteries (4.5V)
• Dimensions: Approx. 163mm length × 51.6mm width (board); package ~18 × 12.5 × 3 cm
• Weight: ~50g (device)
• Color: Black
• Includes: Faulty Cat board, inductor (coil/probe tip)
• Does not include: Batteries, battery holder, USB-C cable
• Open Source: Hardware (KiCad) and firmware available on GitHub; firmware v3 with full documentation for glitching, safety, JTAG/SWD, etc.
• GitHub

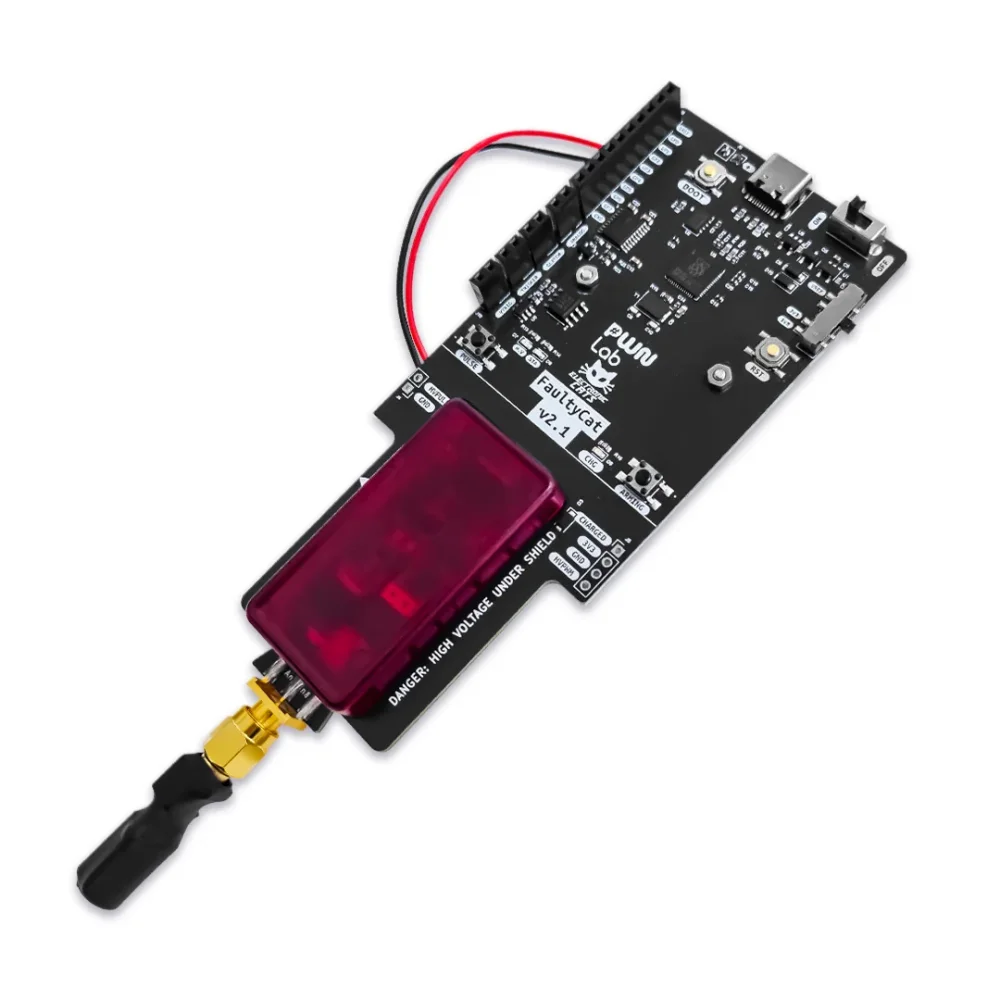

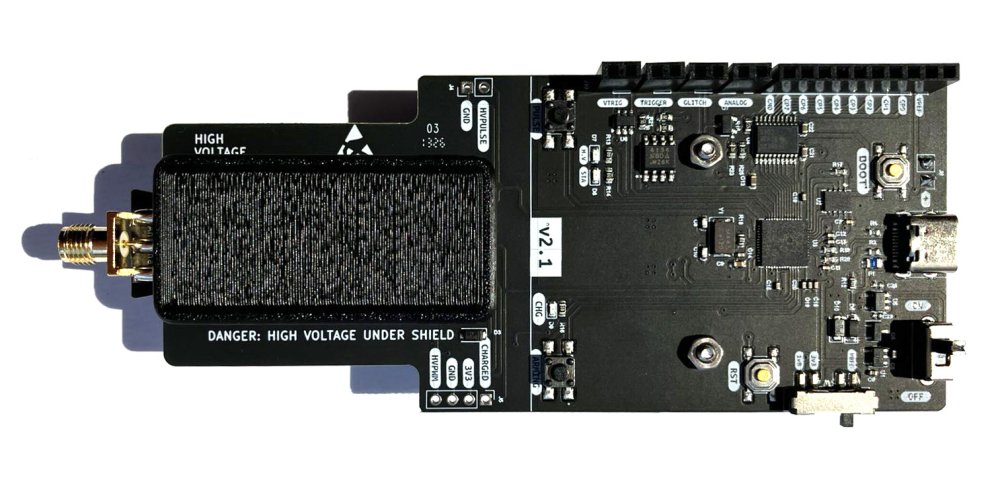

Real photos:
