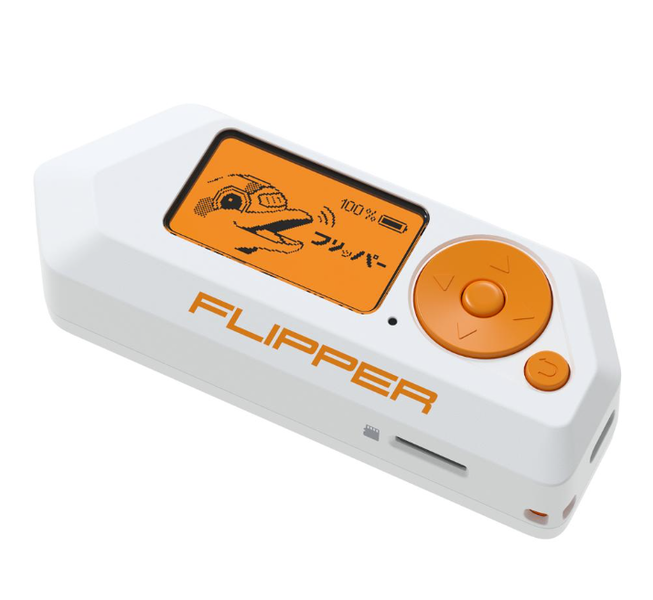

Flipper Zero: Portable Multi-Tool for RFID, NFC, Sub-GHz & IR Hacking
Flipper Zero is a compact, portable multi-tool device designed for pentesters, security researchers, electronics enthusiasts, and geeks.
Shaped like a friendly cyber-dolphin, it serves as a versatile "Swiss Army knife" for exploring and interacting with various wireless protocols and access control systems.

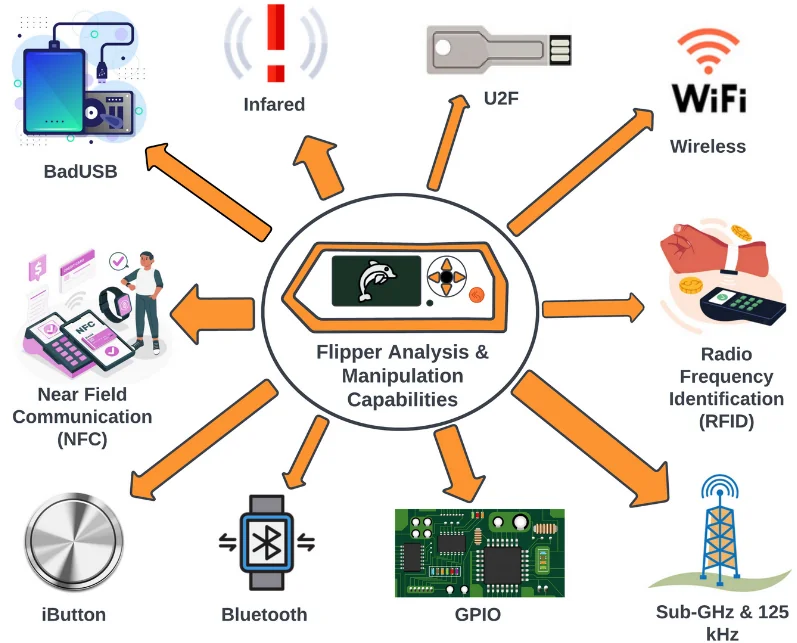

It can read, emulate, and interact with RFID/NFC tags, sub-GHz radio signals (e.g., remote controls, doorbells), infrared devices (TV remotes), iButton, and more.
With GPIO pins, Bluetooth LE, and microSD support, it's ideal for hardware hacking, debugging, prototyping, and everyday experimentation. It runs on open-source firmware (FreeRTOS) and has a vibrant community.

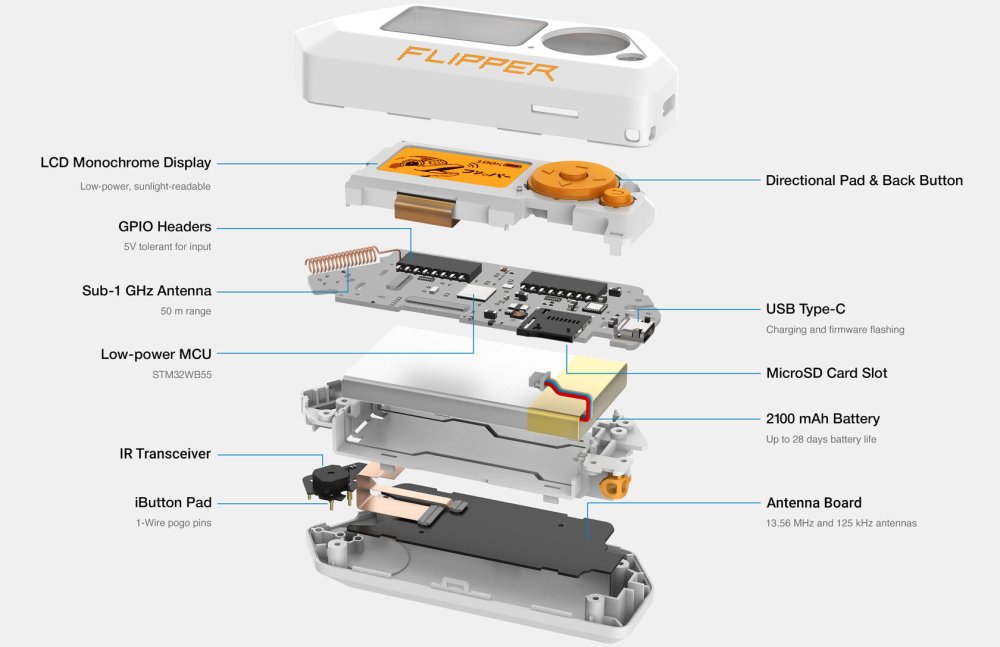

Specifications:
- Dimensions: 100.3 × 40.1 × 25.6 mm
- Weight: 102 g
- Materials: PC, ABS, PMMA

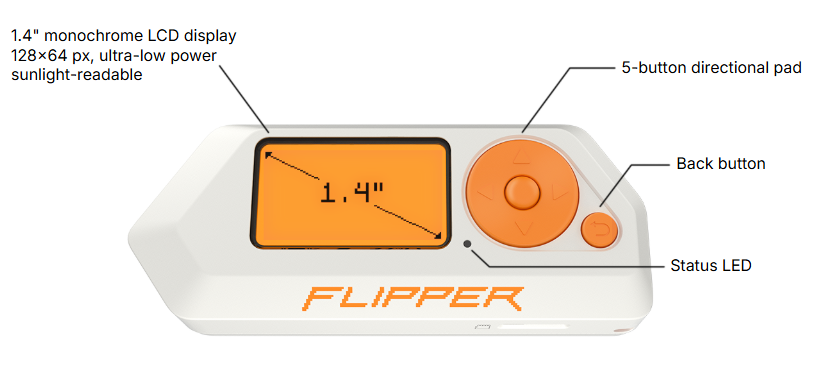

- Display: 1.4" monochrome LCD, 128×64 pixels (ST7567 controller, SPI)
- Processor: STM32WB55RG – ARM Cortex-M4 (64 MHz application) + Cortex-M0+ (radio), 1024 KB Flash, 256 KB SRAM
- Battery: LiPo 2000 mAh (up to ~7 days standby)
- Storage: microSD card (up to 256 GB)
- OS: FreeRTOS
- Other: 5-way directional pad + OK button, LED indicators
Connectivity & Modules:
- 125 kHz RFID (reading/emulation)
- 13.56 MHz NFC (reading, writing, emulation)
- Sub-1 GHz radio (CC1101 transceiver, ~300–928 MHz depending on region)
- Infrared transceiver
- Bluetooth LE 5.4

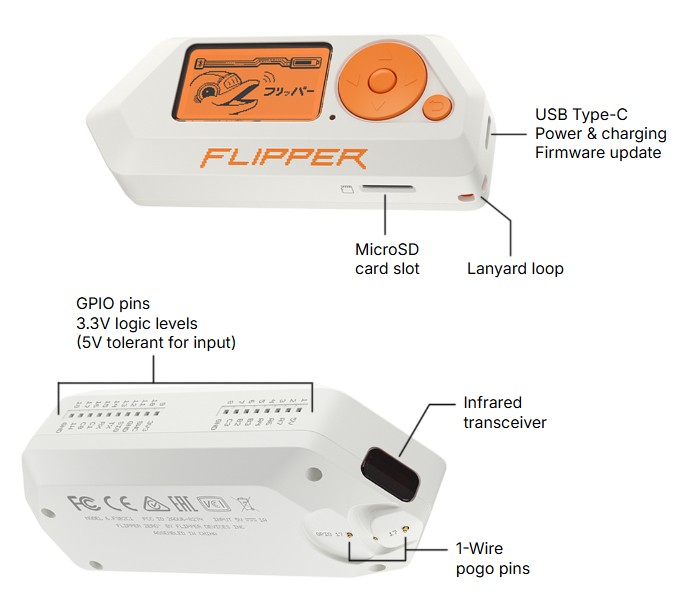

- GPIO (18-pin, 5V tolerant, supports UART/SPI/I2C/1-Wire)
- USB Type-C
- Buzzer (100–2500 Hz, ~87 dB) + vibration motor
Documentation:
- GPIO Pinout
- Flipper Zero Dokumentace (EN)
- MicroSD card setup (EN)
Package contents:
- 1 × Flipper Zero
- 1 × USB-C na USB-A kabel
- 1 × Rychlý průvodce
