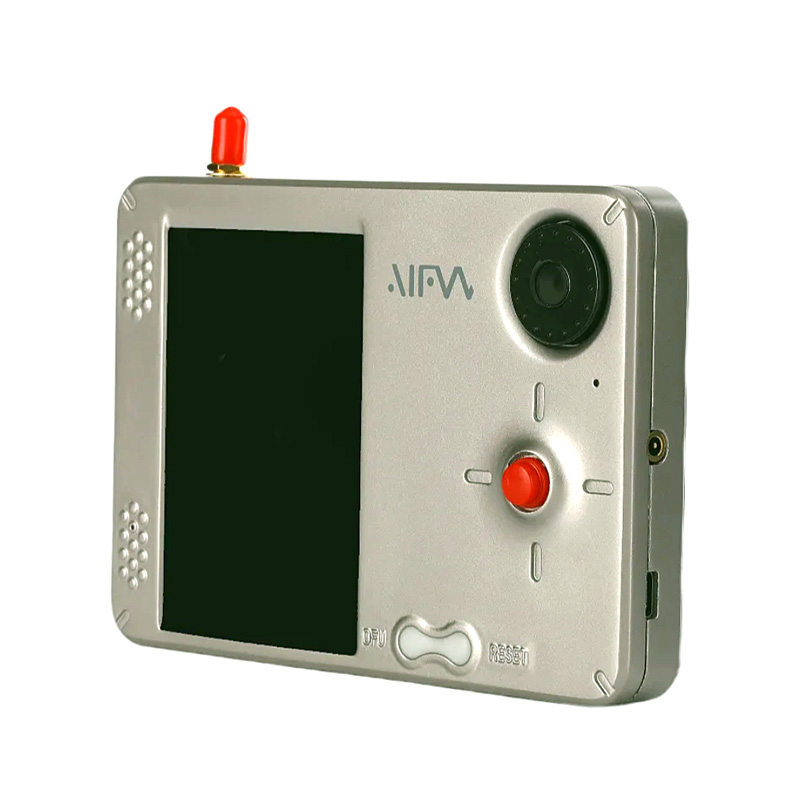

PortaRF: All-in-One HackRF One + PortaPack H4M SDR

PortaRF combines HackRF One and PortaPack H4M into a single powerful portable SDR board (1 MHz–6 GHz).

Features 4" IPS display, 3000mAh battery, dual speakers, and optional AI voice control.

Perfect for RF exploration and pentesting.

PortaRF is an innovative open-source single-board Software Defined Radio (SDR) developed by OpenSourceSDRLab. It integrates the functionality of the HackRF One and PortaPack H4M into a compact, unified PCB design.

This standalone portable device supports both transmission and reception of radio signals across a wide frequency range of 1 MHz to 6 GHz, eliminating the need for stacking separate boards.

It runs Mayhem firmware and offers improved signal quality, a larger high-quality display, expanded storage, longer battery life, and optional AI voice control via an ESP32-based extension board.

Key improvements over traditional HackRF + PortaPack setups include a more compact form factor, better integration, enhanced ergonomics (gamepad-style controls, rotary knob), a premium IPS touchscreen, dual speakers, and a custom snap-fit enclosure.

It is ideal for RF exploration, signal analysis, pentesting, research, and hobbyist applications.

Specifications:

RF Capabilities: 1 MHz – 6 GHz Tx/Rx

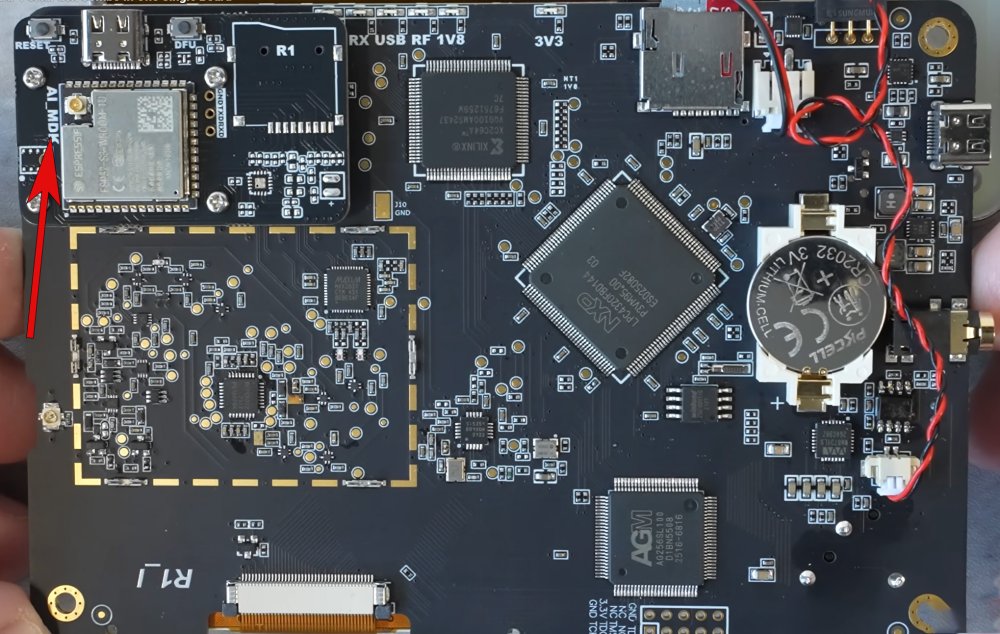

Main MCU: NXP LPC4320 (dual-core ARM Cortex-M4/M0)
CPLD: Xilinx XC2C64A + AGM AG256SL100
RF ICs: MAX2837 (2.3–2.7 GHz), RFFC5072 (wideband synthesizer/mixer)
Storage: 2 MB SPI Flash (W25Q16DV), microSD card slot
Display: 4.0-inch IPS full-view resistive touchscreen (upgraded from 3.2-inch)
Audio: Built-in dual speakers + 3.5 mm headphone jack
Power: 3000 mAh lithium battery with protection circuits, USB-C charging
Controls: Gamepad-style directional buttons, rotary knob, touch screen
Connectivity: USB Type-C, board-to-board expansion connector
Optional Extension: ESP32-S3 AI MDK board (beta voice control for wake, app switching, reboot, etc.)
Indicators: Multiple LEDs with light guide columns (Power, RX, TX, etc.)

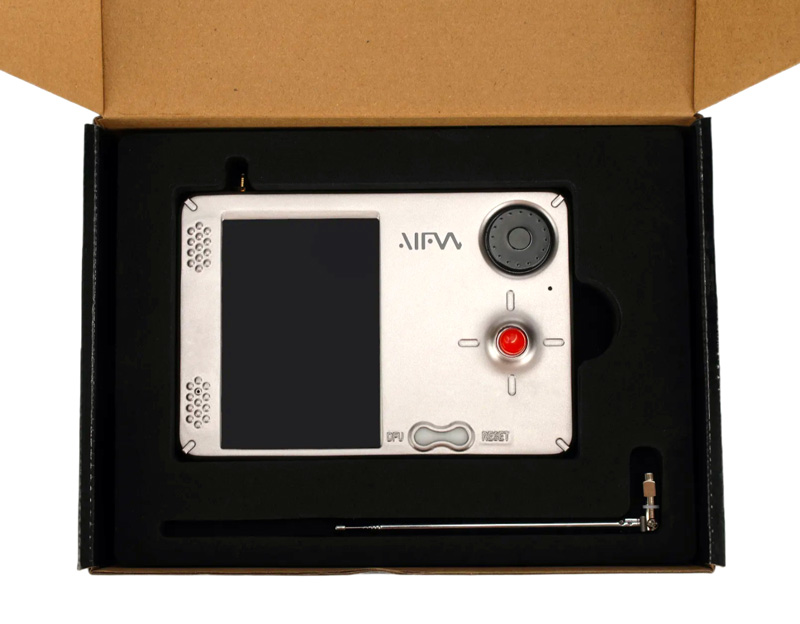

Enclosure: Custom snap-fit shell

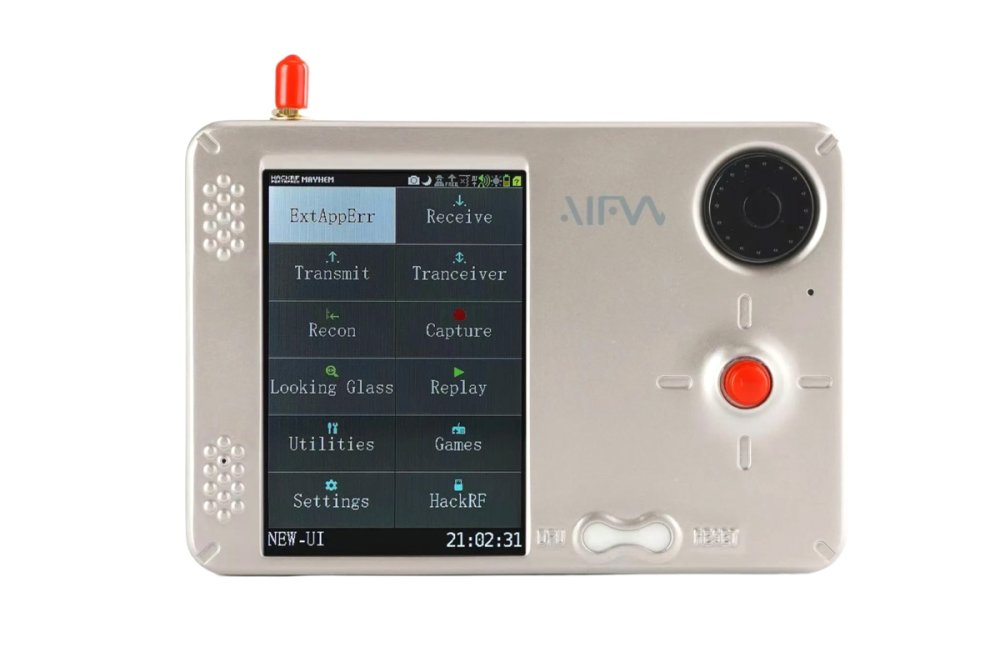

Firmware: Custom fork of Mayhem firmware (highly compatible with main branch)

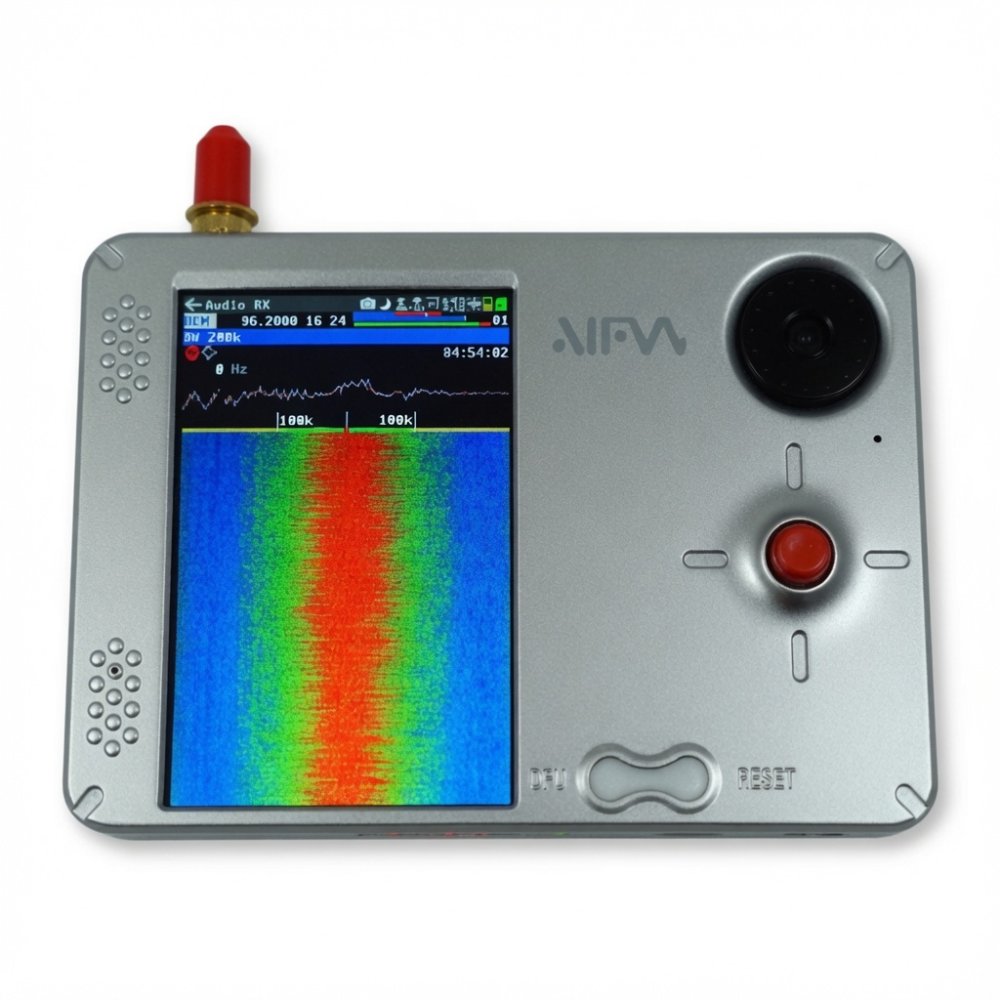

Applications (examples): ADS-B, AIS, Bluetooth sniffing, NRF24, analog TV, radiosondes, TPMS, pager decoding (Rx); key fob emulation, APRS, Morse, SSTV, RDS, OOK (Tx), spectrum analysis, etc.
